ASUS ExpertWiFi EBR63 AX3000 Dual-Band WiFi 6 (802.11ax) Router (NE-AEBR63)

Name: Vertex for Enterprise
Price range: $

HK$1,499

Estimated Delivery: 4-5 working days

All in One Access Point with Router, Switch and Security Gateway, supports up to 5 SSIDs, VLAN, SDN, customized guest portal, site-to-site VPN, commercial-grade network security and easy management app.

Warranty: 3 Years

SKU: NE-AEBR63 Categories: ASUS, Networking, WiFi Access Point / Router

Description

Secure and Segmented Networking

Easy business WiFi network settings via Self-Defined Networks, and enhanced business security with VLAN support, offering up to five SSIDs for device segregation and prioritization in diverse business scenarios.

Customizable Guest Portal

Guest portals can be tailored to meet your business needs, with custom portal types, branding and visual templates to fit particular business styles

Backup WAN for Stable Connectivity

The USB port can be used as a backup WAN by connecting it to a mobile phone with hotspot to maintain a reliable internet connection

Commercial-Grade Network Security and VPN

Safe Browsing, VPN features to connect easily and securely to public WiFi, and a free subscription to ASUS AiProtection Pro

Accommodate to Any Space

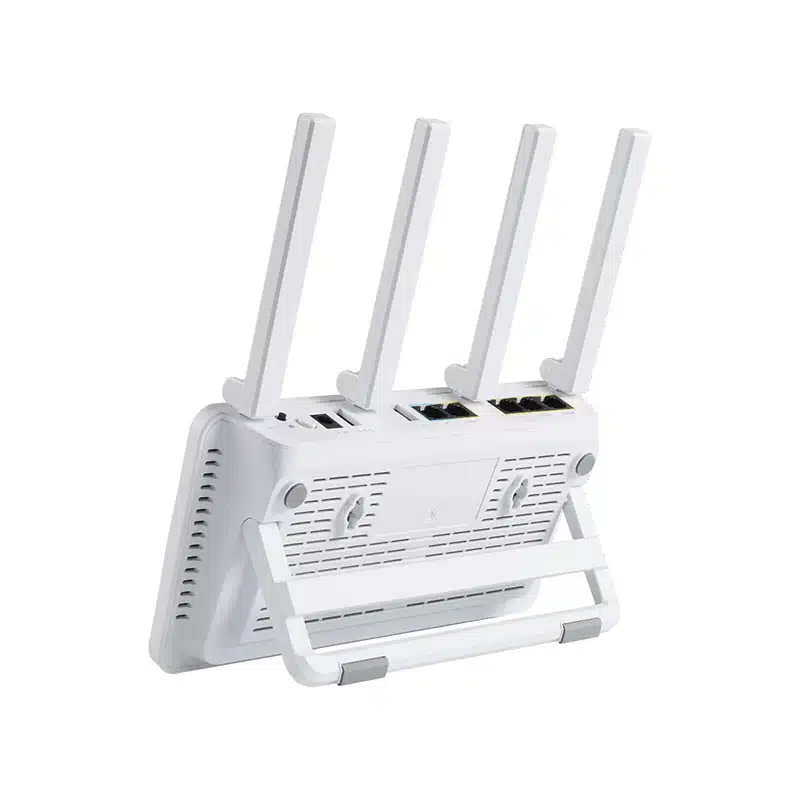

The EBR63 comes with a built-in bracket and wall mount hole that can be adjusted to fit into almost any location for space-saving and more flexibility

Additional information

Network Standard	. IEEE 802.11a . IEEE 802.11b . IEEE 802.11g . WiFi 4 (802.11n) . WiFi 5 (802.11ac) . WiFi 6 (802.11ax) . IPv4 . IPv6
Product Segment	AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
Data Rate	. 802.11a : up to 54 Mbps . 802.11b : up to 11 Mbps . 802.11g : up to 54 Mbps . WiFi 4 (802.11n) : up to 300 Mbps . WiFi 5 (802.11ac) : up to 1734 Mbps . WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps . WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
Antenna	4 External Antenna
Transmit / Receive	. 2.4GHz 2×2 . 5GHz 2×2
Processor	1.7GHz quad-core processor
Memory	. 256MB FLASH . 512MB RAM
Boosts Speed	. OFDMA (Orthogonal Frequency Division Multiple Access) . Beamforming: standard-based and universal . 1024-QAM high data rate . 20/40/80/160 MHz bandwidth
Operating Frequency	. 2.4 GHz . 5 GHz
Operating Mode	. Wireless Router Mode . AiMesh Node Mode . Access Point Mode
I/O Ports	. RJ45 for Gigabits BaseT for WAN x 1 . RJ45 for Gigabits BaseT for LAN x 4 . USB 3.2 Gen 1 x 1 . USB2.0
Buttons	. WPS Button . Reset Button . Power Switch
LED Indicator	. POWER . WAN . LAN . 5G . 2.4G
Power Supply	. AC Input : 110V~240V(50~60Hz) . DC Output : 12V with max. 2A current
Mounting	Wall Mount
Package Content	. ExpertWiFi EBR63 . RJ45 Ethernet Cable . Power Adapter . Quick Start Guide . Warranty Card . ExpertWiFi EBR63 . RJ45 Ethernet Cable . Power Adapter . Quick Start Guide . Warranty Card
Product Weight	436 g
Product Dimentions	225 x 127 x 146 mm
AiMesh	AiMesh . Primary AiMesh Router . AiMesh Node
Device Access Control	"Allow you to block access to unwanted websites and apps." —————————————————— Web & Apps Filters Time Scheduling Safe Browsing Customized Internet Schedule . Maximum Device Access Control Profile :12 . Maximum Device Access Control Content Filter Rule :12
Dashboard	Dashboard
Self-Defined Network	"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings." ———————————————————————— Self-Defined Network Type . Employee . Guest Portal . Guest Network . Scheduled Network . IoT Network . VPN Network . Maximum Self-Defined Network Rule :16 Multiple Network VLAN Captive Portal for Free WiFi VPN WiFi WiFi Scheduling: One Time Access WiFi Scheduling: Weekly Schedule WiFi share: QR code, PDF file Bandwidth Limiter AP isolate DNS Server Connection
Security	AiProtection VPN WPS Let's Encrypt DNS-over-TLS SSH Firewall . Maximum Firewall Keyword Filter :64 . Maximum Firewall Network Service Filter :32 . Maximum Firewall URL Filter : 64
AiProtection	AiProtection Pro . Router Security Assessment . Malicious Site Blocking . Two-Way IPS . Infected Device Prevention and Blocking
VPN	. VPN Client L2PT . VPN Client Open VPN . VPN Client PPTP . VPN Client WireGuard . VPN Server IPSec . VPN Server Open VPN . VPN Server PPTP . VPN Server WireGuard . VPN Fusion . Support Surfshark
Traffic Control	Adaptive QoS . Bandwidth Monitor . Bandwidth Limiter . Real-time Traffic Monitor . Wired Traffic Monitor . Wireless Traffic Monitor Traffic Analyzer . Website History
WAN	. PPPoE . PPTP . L2TP . IPSec Dual WAN 3G / 4G LTE Dongle 4G / 5G Auto Mobile Tethering Port Forwarding Port Triggering DMZ DDNS NAT Passthrough . PPTP Pass-Through . L2TP Pass-Through . IPSec Pass-Through
LAN	. DHCP Server . IGMP Snooping . IPTV . VLAN
Wireless	MU-MIMO UTF-8 SSID WiFi MAC Address Filter . Maximum MAC Filters : 64 Wireless Scheduler
USB application	. 4G / 5G Auto Mobile Tethering . Media Server . Samba Server . FTP Server . Shared Folder Privileges
User Interface	. WEB: ASUSWRT . APP: ASUS ExpertWiFi APP
Administration	. Configuration Backup and Restore . Diagnosis Tools . Feedback System . System Log . New Device Connect Notification . Login Captcha . Connection Diagnosis . Auto Firmware Update
Warranty	3 Years
